Modes of Addressing

Video Tutorial

Immediate

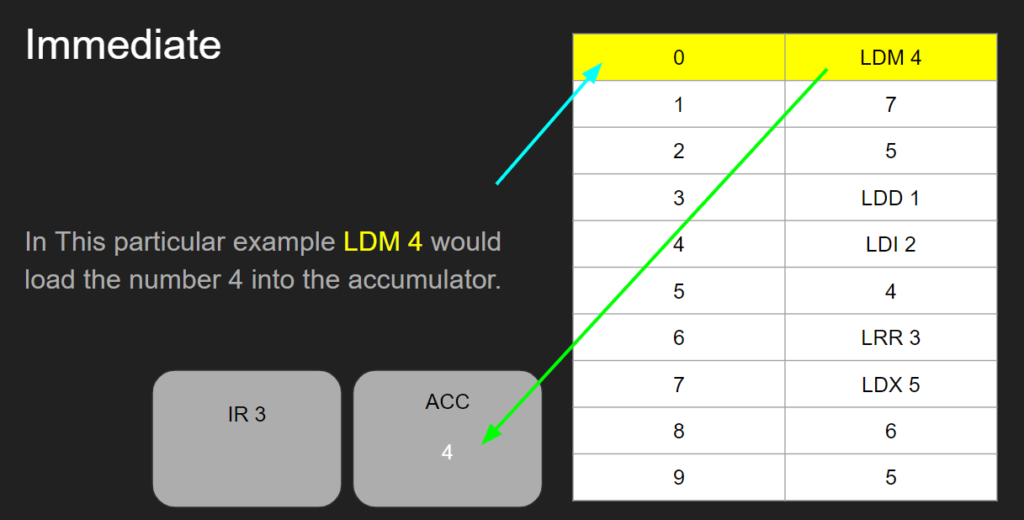

Immediate Addressing

The operand is actual value to be used.

So if the instruction LDM 4 – the number 4 would be sent to the accumulator.



Direct

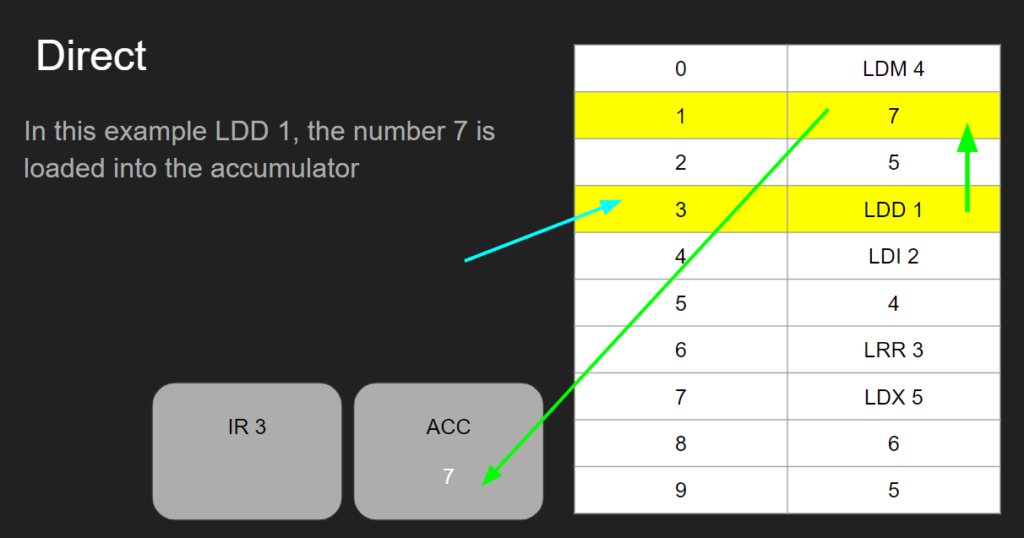

Direct Addressing

The operand is the address of the value to be used.

If the instruction is LDD 1 then the value stored at address 1 will sent to the accumulator.



Indirect

Indirect Addressing

The operand is the address of the address to be used. This is similar to direct, but with one more hop in the process.



Indexed

Indexed Addressing

The operand plus the contents of the Index Register is the address of the value to be used.

Relative

Relative Addressing

The operand is the offset from the current address of the value to be used.
